Threads in Java


Threads in Java

There are two typical methods to use threads in java:
  1. Derived a new class from the Thread class
  2. Creating a class that implements the Runnable interface

Hay dos métodos típicos para usar las threads en java:
  1. Derivando una nueva clase de la clase Thread
  2. Creando una clase que implemente la interface Runnable

synchronized

The synchronized method is used in Java to share data between threads. The following problem illustrates how to use synchronized to share the data of the PiResult class between the main thread and the worker thread.
El método synchronized es usado en Java para compartir datos entre threads. El problema siguiente ilustra cómo usar synchronized para compartir los datos de la clase PiResult entre la thread principal y la thread trabajadora.

Problem 1
Create a Java program called PiCompJ to compute the value of π creating a class that derives from the Thread class.
Cree un programa de Java llamado PiCompJ para calcular el valor de π creando una clase que se deriva de la clase Thread.

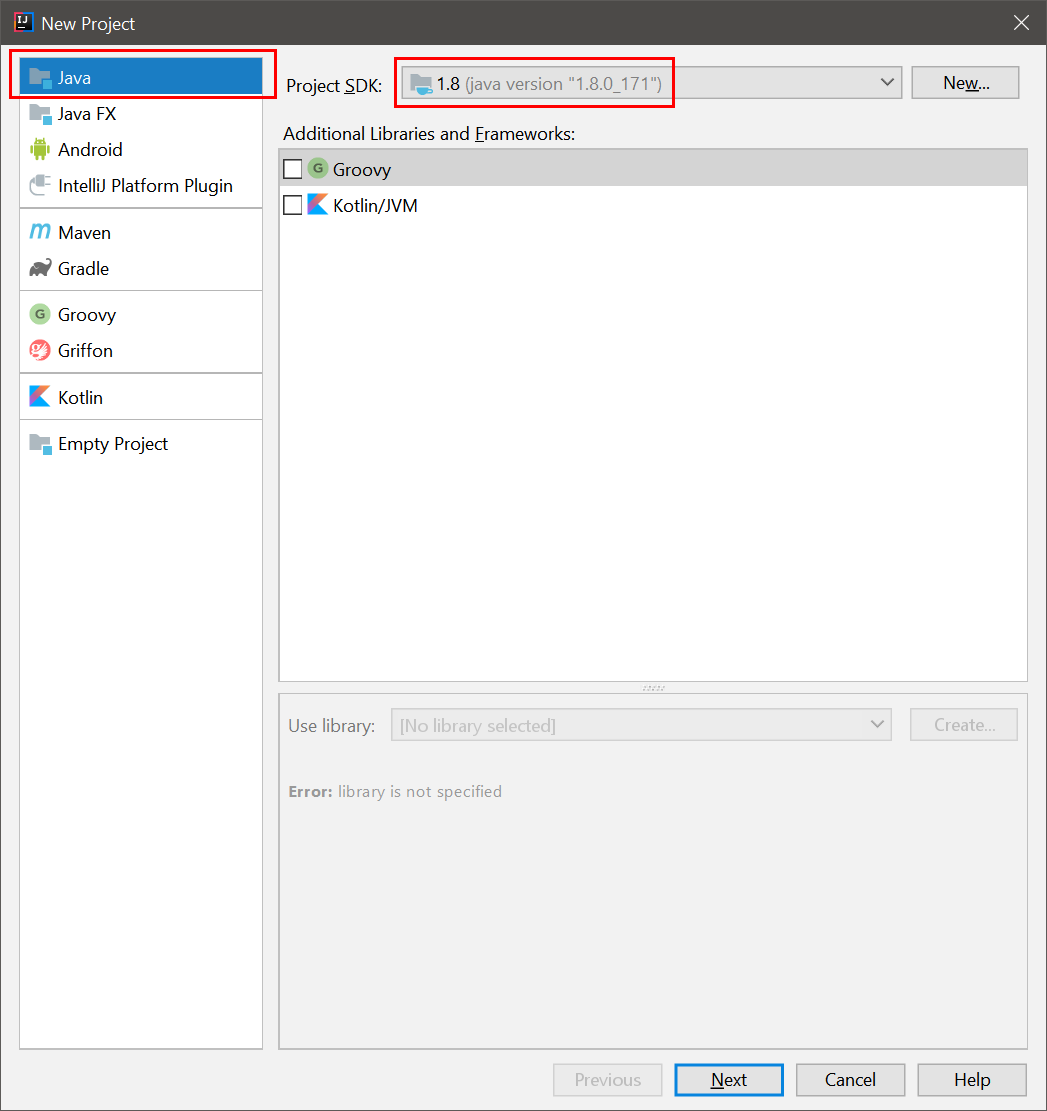

ProjectSDK

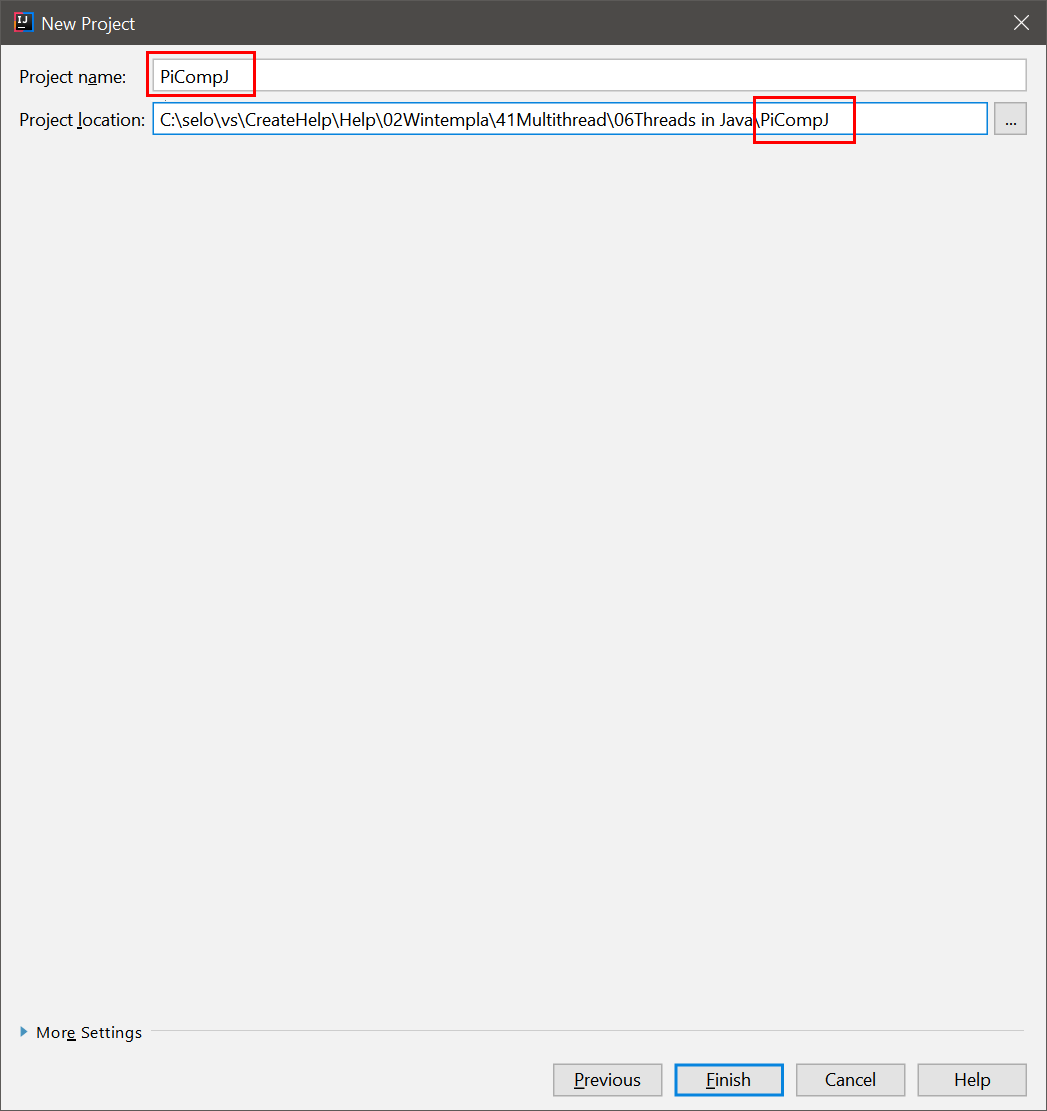

PiCompJNew

PiCompJRun1

PiCompJRun2

PiCompJRun3

Step A

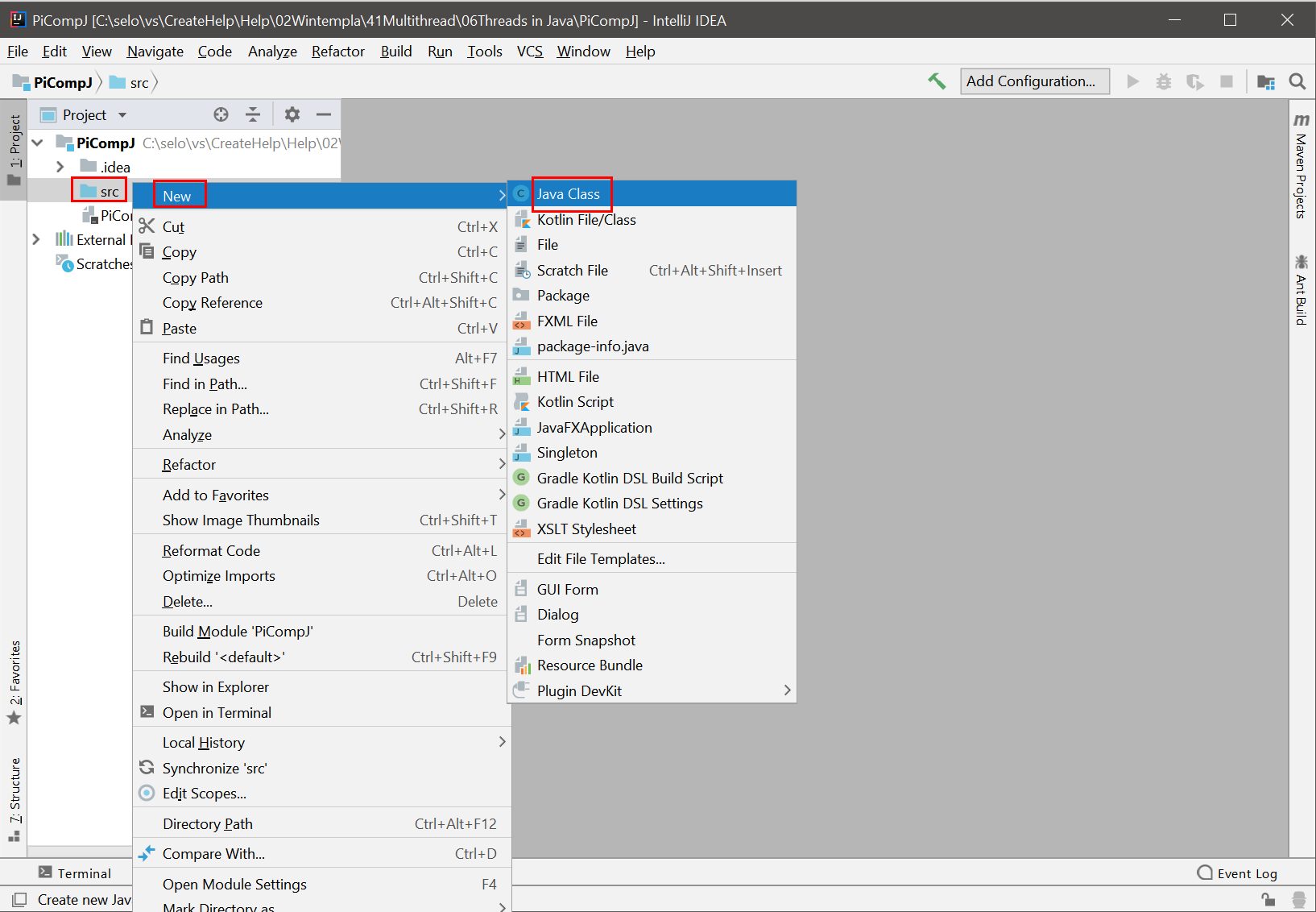

Open the src folder and use the context menu to add a Java class as shown. Set the name of the class to PiCompJ.
Abra la carpeta de src y use el menú de contexto para agregar una clase de Java como se muestra. Fije el nombre de la clase en PiCompj.

PiCompjAddClass

Step B
Edit the PiCompJ.java file as shownimport java.awt.*;import java.awt.event.*;import javax.swing.*;

PiCompJ.java
public class PiCompJ extends JFrame implements ActionListener
{
     private JTextField tbxValue = null;
     private JButton btRun = null;
     private JButton btStop = null;
     private PiThread piThread = null;
     public PiResult piResult = null;
     private Timer timer = null;

     public PiCompJ()
     {
          this.setTitle("Calculate PI");
          this.setSize(400,400);
          this.addWindowListener(new ExitListener());
          //
          Container pane = this.getContentPane();
          pane.setLayout(new FlowLayout());
          //______________________________________________ tbxValue
          tbxValue = new JTextField(20);
          pane.add(tbxValue);
          //______________________________________________ btRun
          btRun = new JButton("Run");
          pane.add(btRun);
          btRun.addActionListener(this);
          //______________________________________________ btStop
          btStop = new JButton("Stop");
          pane.add(btStop);
          btStop.addActionListener(this);
          btStop.setEnabled(false);
          //______________________________
          piResult = new PiResult();
          timer = new Timer(1000,this);
     }

     @Override
     public void actionPerformed(ActionEvent e)
     {
          if(e.getSource() == btRun) // When the user clicks the Run button
          {
               btRun.setEnabled(false);
               btStop.setEnabled(true);
               this.setTitle("Running ...");
               timer.start();
               //
               piThread = new PiThread();
               piThread.piResult = piResult;
               piThread.start();
          }
          else if(e.getSource() == btStop)// When the user clicks the Stop button
          {
               synchronized(piResult)
               {
                    piResult.cancel = true;
               }
          }
          else if(timer != null && e.getSource() == timer)// Call every second
          {
               synchronized(piResult)
               {
                    tbxValue.setText(Double.toString(piResult.valuePi));
                    this.setTitle(Double.toString(piResult.progress));
               }
               if(piThread.isAlive() == false)
               {
                    timer.stop();
                    btRun.setEnabled(true);
                    btStop.setEnabled(false);
                    this.setTitle("Done!");
               }
          }
     }

     public static void main(String[] args)
     {
          PiCompJ frame = new PiCompJ();
          frame.pack();
          frame.setVisible(true);
     }

     public class ExitListener extends WindowAdapter
     {
          public void windowClosing(WindowEvent e)
          {
               System.exit(0);
          }
     }

     // This class is used to share data between the main thread and the worker thread
     public class PiResult
     {
          public double valuePi;
          public double progress;
          public boolean cancel;
          public void PiResult()
          {
               valuePi = 0.0;
               progress = 0.0;
               cancel = false;
          }
     }

     public class PiThread extends Thread
     {
          PiResult piResult = null;

          @Override
          public void run()
          {
               synchronized(piResult)
               {
                    piResult.progress = 0.0;
                    piResult.cancel = false;
                    piResult.valuePi = 0.0;
               }
               double sum = 0.0;
               final int maxIterations = 1000000000;
               boolean cancel = false;
               for(int i =0; i<maxIterations; i++)
               {
                    //___________________________________________ Perform calculation
                    if(i%2 == 0)
                         sum += (1.0/(2*i+1));
                    else
                         sum -= (1.0/(2*i+1));
                    synchronized(piResult) // update result to main thread
                    {
                         piResult.progress = (100.0*i)/maxIterations;
                         cancel = piResult.cancel;
                         piResult.valuePi = 4*sum;
                    }
                    if(cancel == true) break; // Stop
               }
          }
     }
}


Problem 24
Create a Java program called PiInterfaceJ to compute the value of π creating a class that implements the Runnable interface. Follow the same steps of the previous problem, and then, edit the PiInterfaceJ.java file. The program looks and runs the same as the previous problem, the main difference is that in the previous problem a class derived from Thread is created, while in this problem the main class implements the Runnable interface.
Cree un programa de Java llamado PiInterfaceJ para calcular el valor de π creando una clase que implementa la interface Runnable. Siga los mismos pasos del problema previo, y entonces, edite el archivo PiInterfaceJ.java. El programa se ve y corre igual al problema previo, la diferencia principal es que en el problema anterior se crea una clase que se deriva de Thread, mientras que en este problema la clase principal implementa la interface Runnable.

PiInterfaceJ.java
import java.awt.*;
import java.awt.event.*;
import javax.swing.*;

public class PiInterfaceJ extends JFrame implements ActionListener, Runnable
{
     private JTextField tbxValue = null;
     private JButton btRun = null;
     private JButton btStop = null;
     private PiResult piResult = null;
     private Timer timer = null;
     private Thread thread = null;

     public PiInterfaceJ()
     {
          this.setTitle("Calculate PI");
          this.setSize(400,400);
          this.addWindowListener(new ExitListener());
          //
          Container pane = this.getContentPane();
          pane.setLayout(new FlowLayout());
          //______________________________________________ tbxValue
          tbxValue = new JTextField(20);
          pane.add(tbxValue);
          //______________________________________________ btRun
          btRun = new JButton("Run");
          pane.add(btRun);
          btRun.addActionListener(this);
          //______________________________________________ btStop
          btStop = new JButton("Stop");
          pane.add(btStop);
          btStop.addActionListener(this);
          btStop.setEnabled(false);
          //______________________________
          piResult = new PiResult();
          timer = new Timer(1000,this);
     }

     @Override
     public void actionPerformed(ActionEvent e)
     {
          if(e.getSource() == btRun) // When the user clicks the Run button
          {
               btRun.setEnabled(false);
               btStop.setEnabled(true);
               this.setTitle("Running ...");
               timer.start();
               //
               thread = new Thread(this);
               thread.start();
          }
          else if(e.getSource() == btStop)// When the user clicks the Stop button
          {
               synchronized(piResult)
               {
                    piResult.cancel = true;
               }
          }
          else if(timer != null && e.getSource() == timer)// Call every second
          {
               synchronized(piResult)
               {
                    tbxValue.setText(Double.toString(piResult.valuePi));
                    this.setTitle(Double.toString(piResult.progress));
               }
               if(thread.isAlive() == false)
               {
                    timer.stop();
                    btRun.setEnabled(true);
                    btStop.setEnabled(false);
                    this.setTitle("Done!");
               }
          }
     }

     @Override
     public void run()
     {
          synchronized(piResult)
          {
               piResult.progress = 0.0;
               piResult.cancel = false;
               piResult.valuePi = 0.0;
          }
          double sum = 0.0;
          final int maxIterations = 1000000000;
          boolean cancel = false;
          for(int i =0; i<maxIterations; i++)
          {
               //___________________________________________ Perform calculation
               if(i%2 == 0)
                    sum += (1.0/(2*i+1));
               else
                    sum -= (1.0/(2*i+1));
               synchronized(piResult) // update result to main thread
               {
                    piResult.progress = (100.0*i)/maxIterations;
                    cancel = piResult.cancel;
                    piResult.valuePi = 4*sum;
               }
               if(cancel == true) break; // Stop
          }
     }

     public static void main(String[] args)
     {
          PiInterfaceJ frame = new PiInterfaceJ();
          frame.pack();
          frame.setVisible(true);
     }

     public class ExitListener extends WindowAdapter
     {
          public void windowClosing(WindowEvent e)
          {
               System.exit(0);
          }
     }

     // This class is used to share data between the main thread and the worker thread
     public class PiResult
     {
          public double valuePi;
          public double progress;
          public boolean cancel;
          public void PiResult()
          {
               valuePi = 0.0;
               progress = 0.0;
               cancel = false;
          }
     }

}
